PRODUCT CENTER
Compare the core equipment used in crushing, screening, powder grinding and ore beneficiation. Final selection should be based on material tests and operating data.
Discuss Equipment →01 · CRUSHING EQUIPMENT
Crusher duty, chamber profile and wear material must match feed hardness, abrasiveness, moisture and target gradation.
Guarding, motors and supplied accessories vary by model and duty. Confirm the current drawing, production photos and technical sheet with the quotation.

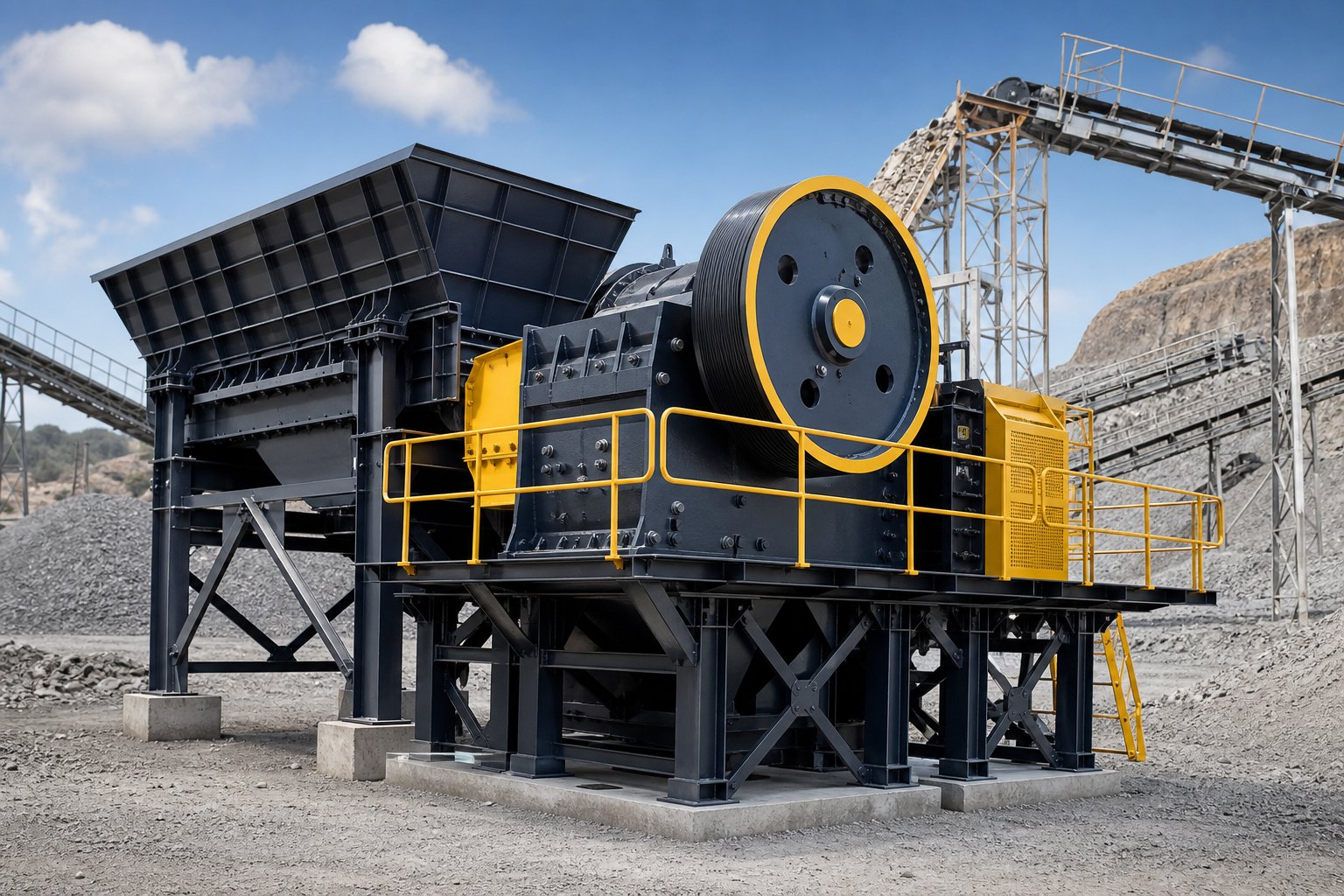

For large feed and primary size reduction in quarry and mineral processing applications.

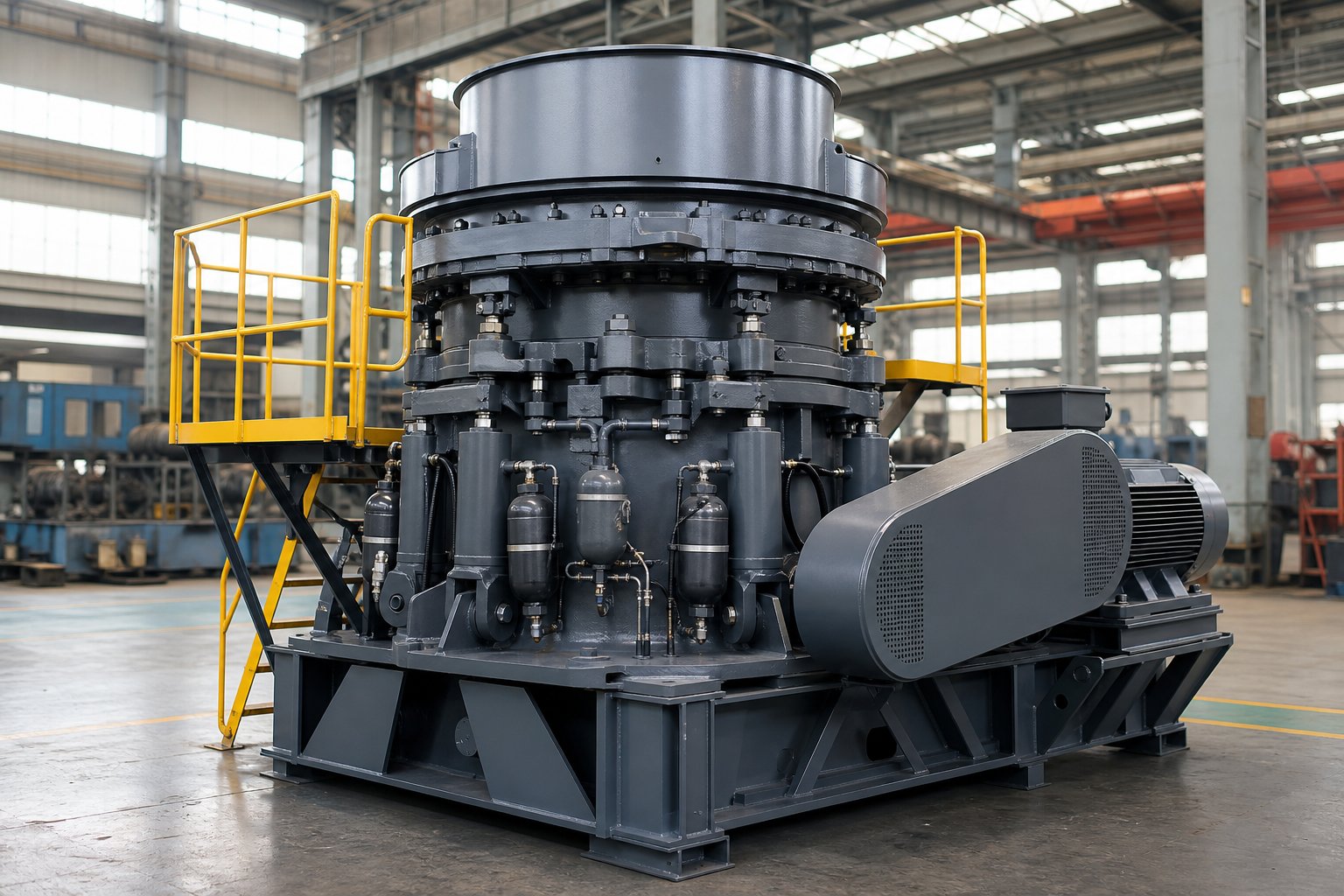

Compression crushing for hard stone, high throughput and controlled product gradation.

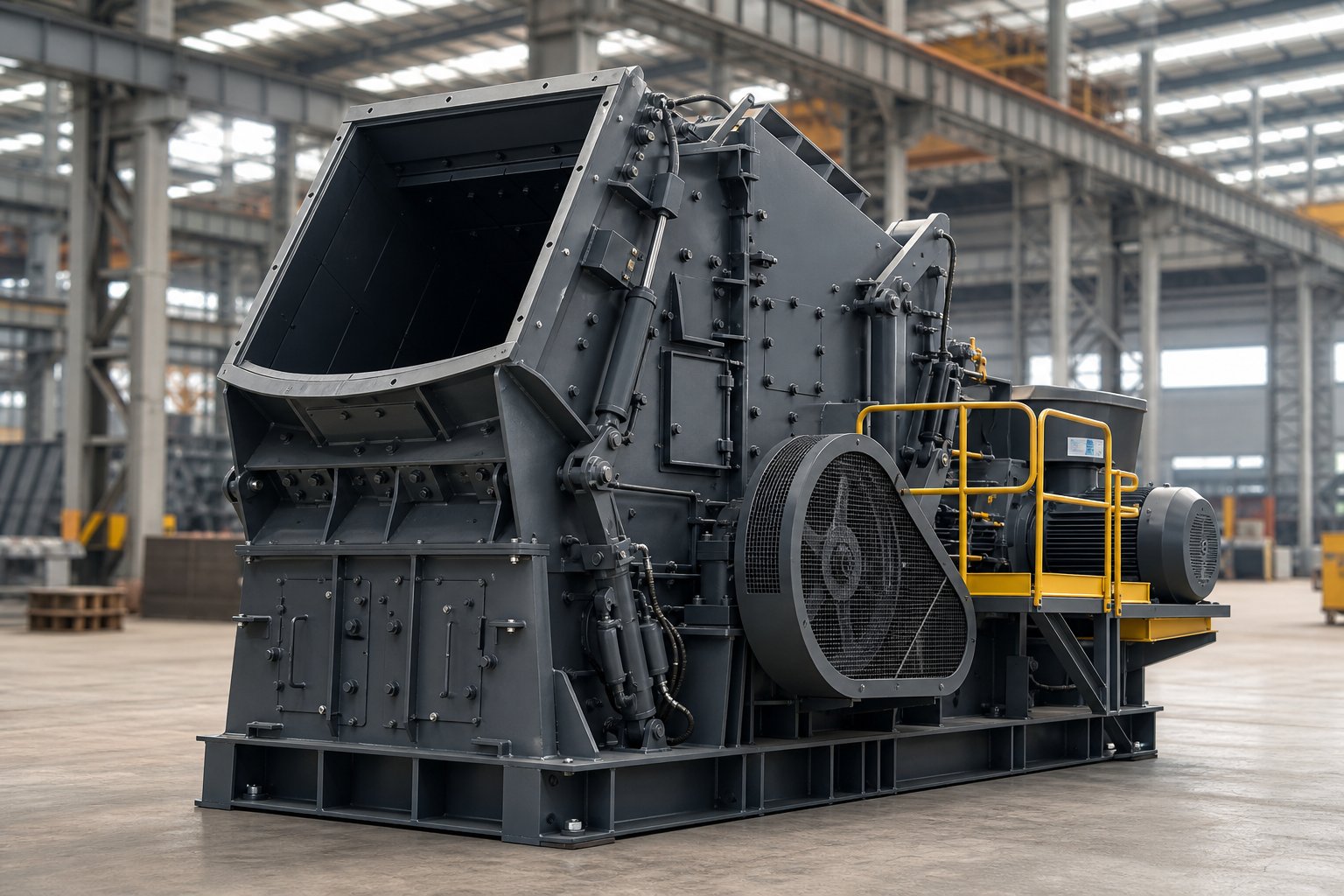

Impact crushing for limestone and medium-hard material where cubic shape is important.

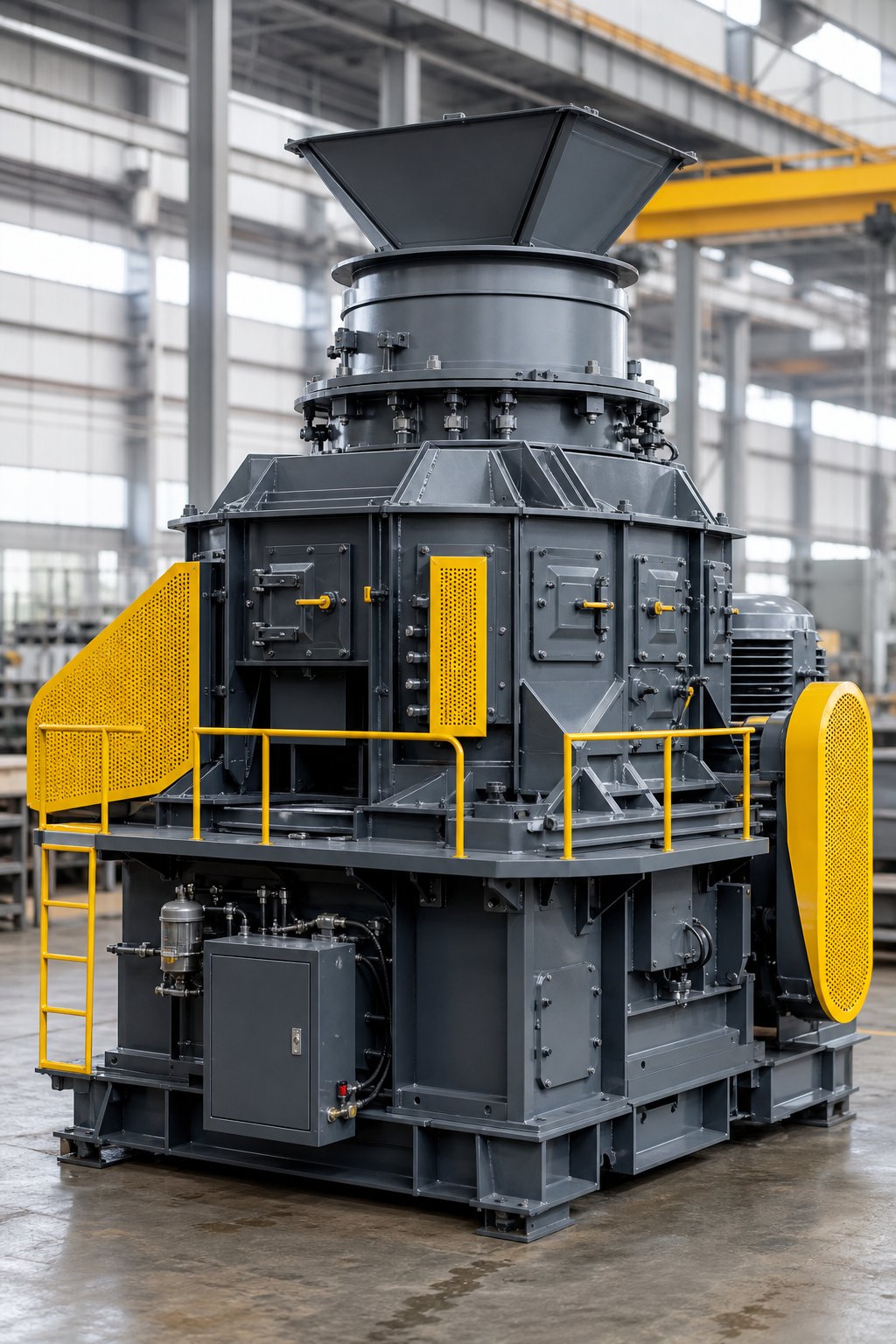

Final-stage shaping and manufactured sand production with adjustable gradation.
QUICK MODEL REFERENCE
Reference parameters for initial model comparison. Final capacity and power are confirmed against material conditions and the signed technical agreement.
| Model | Type | Max feed | Discharge | Capacity | Motor power |
|---|---|---|---|---|---|
| PE-500×750 | Jaw crusher | 425 mm | 50-100 mm | 30-90 t/h | 55 kW |
| PE-750×1060 | Jaw crusher | 630 mm | 80-140 mm | 110-320 t/h | 110 kW |
| PE-900×1200 | Jaw crusher | 750 mm | 95-165 mm | 220-450 t/h | 110 kW |
| PF-1315 | Impact crusher | 500 mm | Set by duty | 160-250 t/h | 180-280 kW |
| PF-1214 | Impact crusher | 400 mm | Set by duty | 100-180 t/h | 132-180 kW |

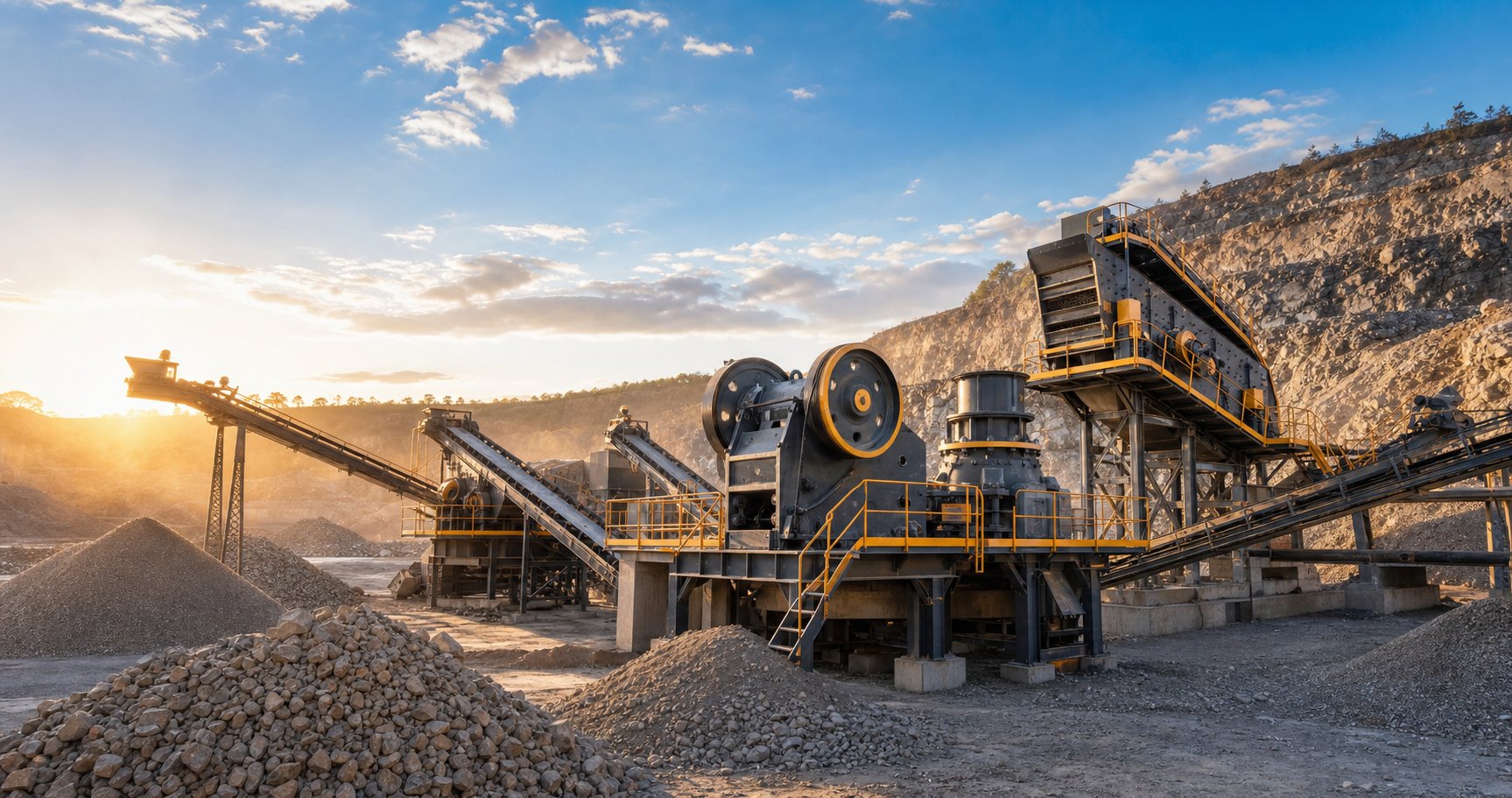

02 · FEEDING & SCREENING
Correct feeder and screen sizing protects downstream machines and keeps recirculating load under control.

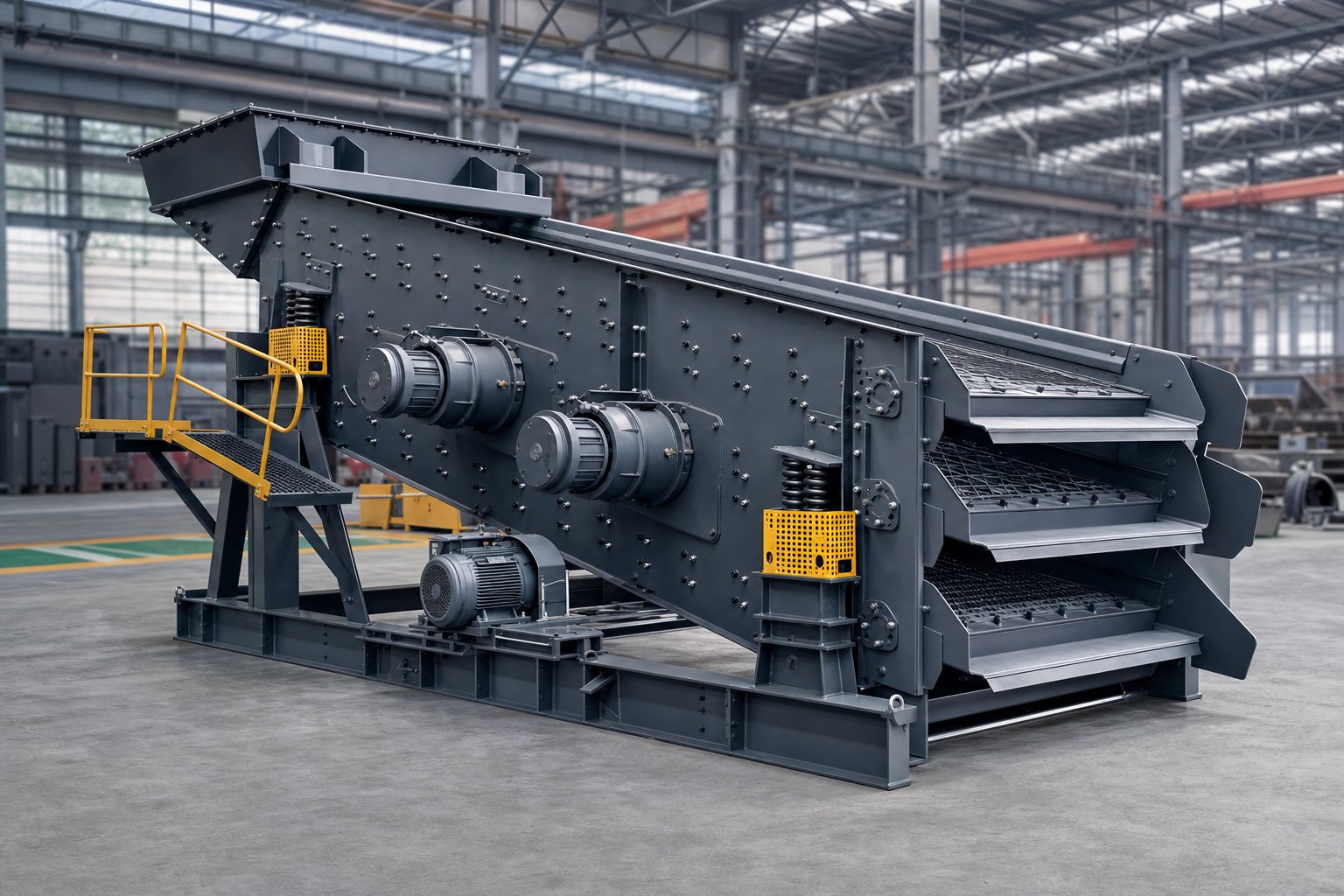

Multi-deck separation for aggregate sizing and closed-circuit crushing.
Steady feed, transfer and stockpiling equipment coordinated with the complete flowsheet.
03 · GRINDING EQUIPMENT
Mill selection depends on feed hardness, moisture, target fineness, capacity and downstream application.

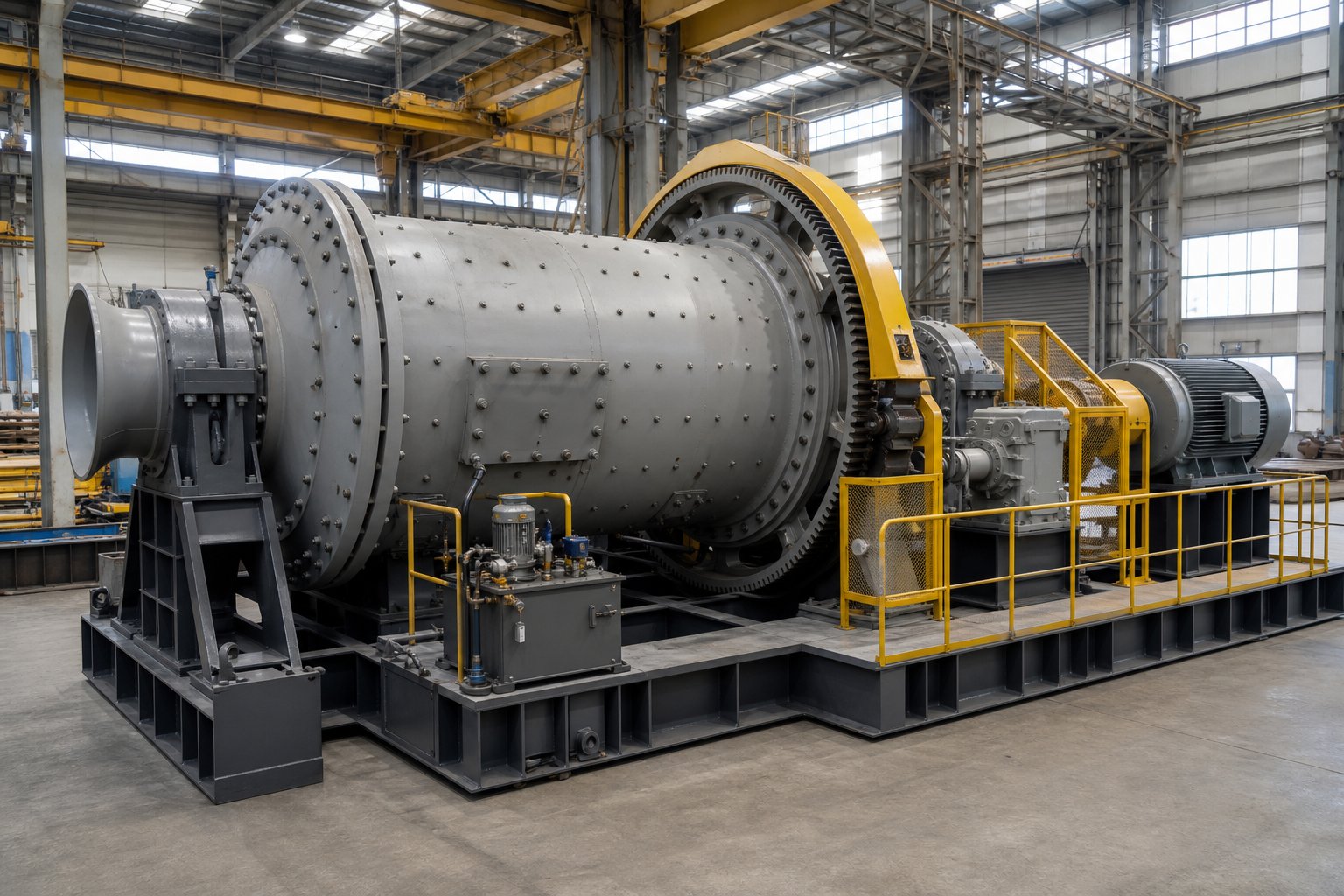

Wet or dry grinding for mineral processing and industrial materials.

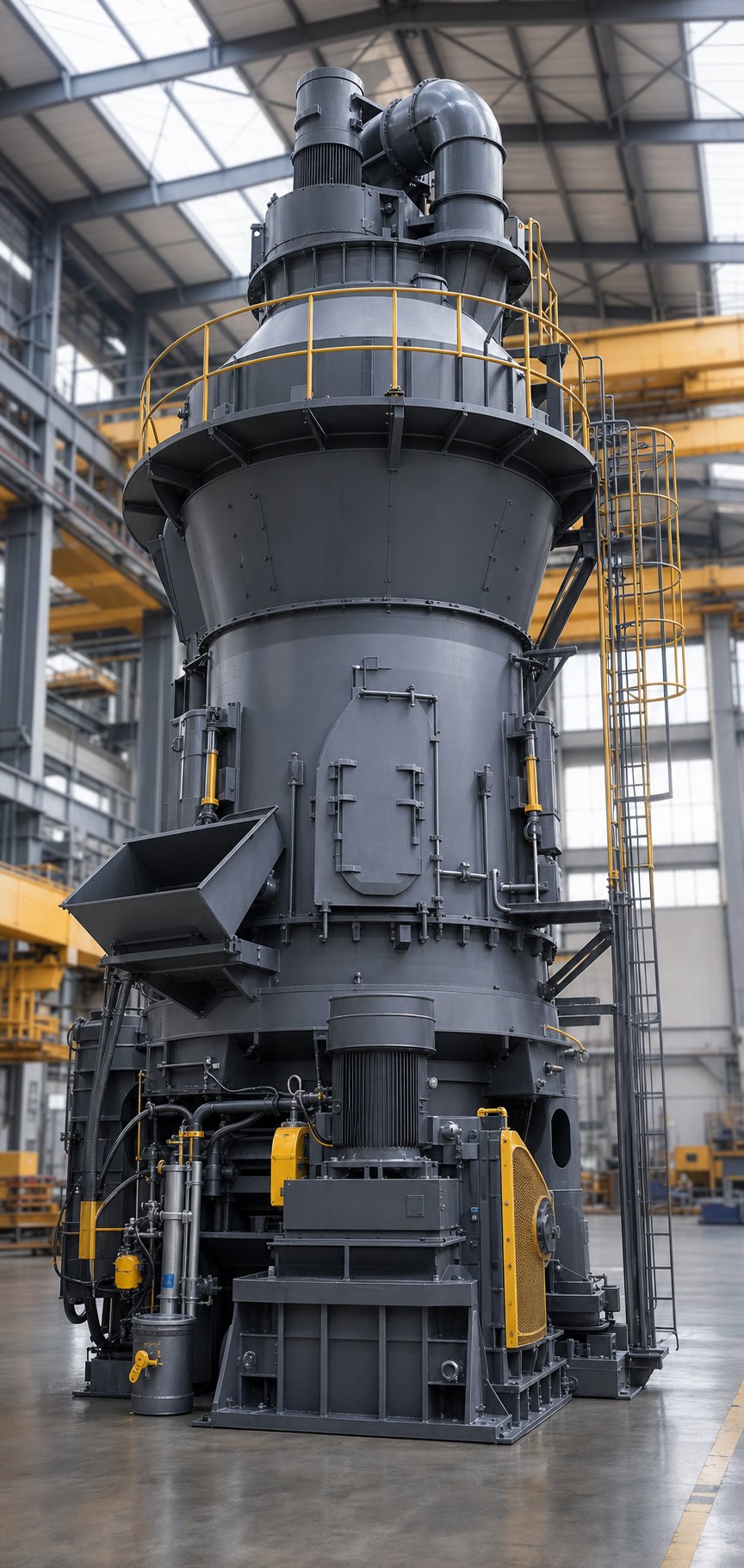

Integrated grinding, drying and classification for industrial mineral powder.
04 · BENEFICIATION
Mineralogy and test-work results are required before defining a flotation, magnetic or gravity separation flowsheet.

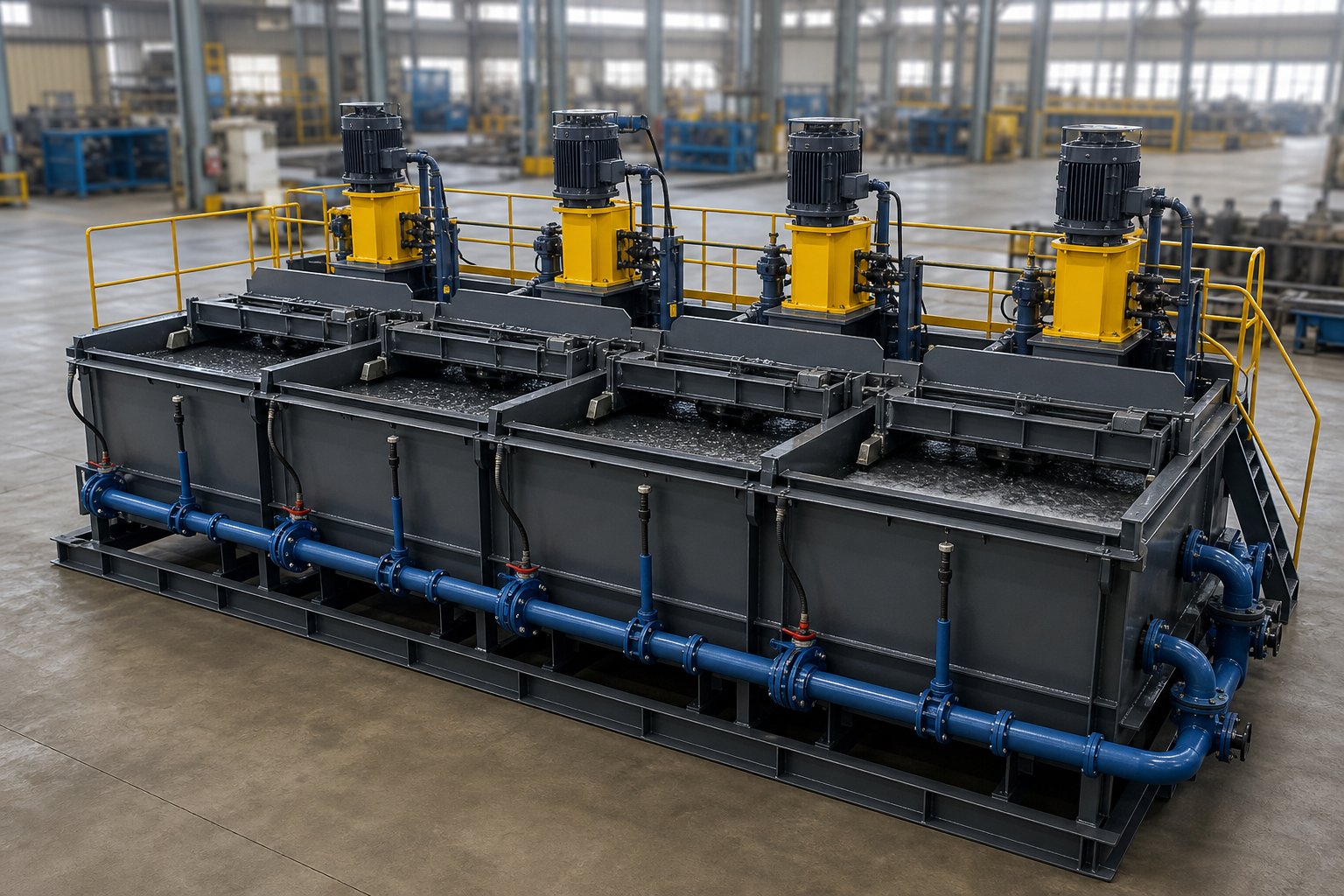

Aeration and agitation equipment for sulfide and selected non-ferrous ores.

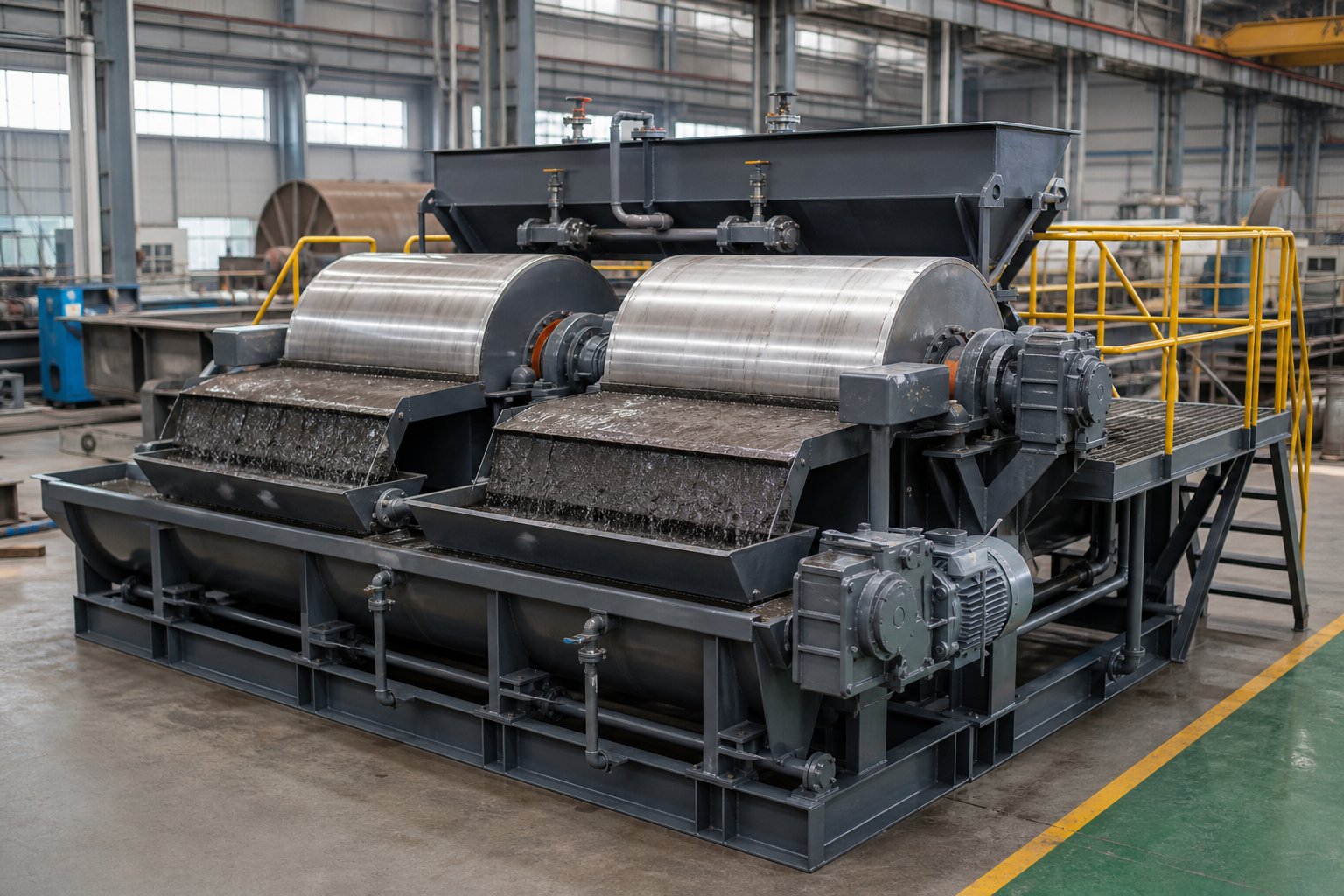

Wet drum separation for magnetite and other ferromagnetic minerals.
05 · MOBILE EQUIPMENT
Tracked and wheeled plants reduce civil work and support relocation between quarry faces or recycling sites.

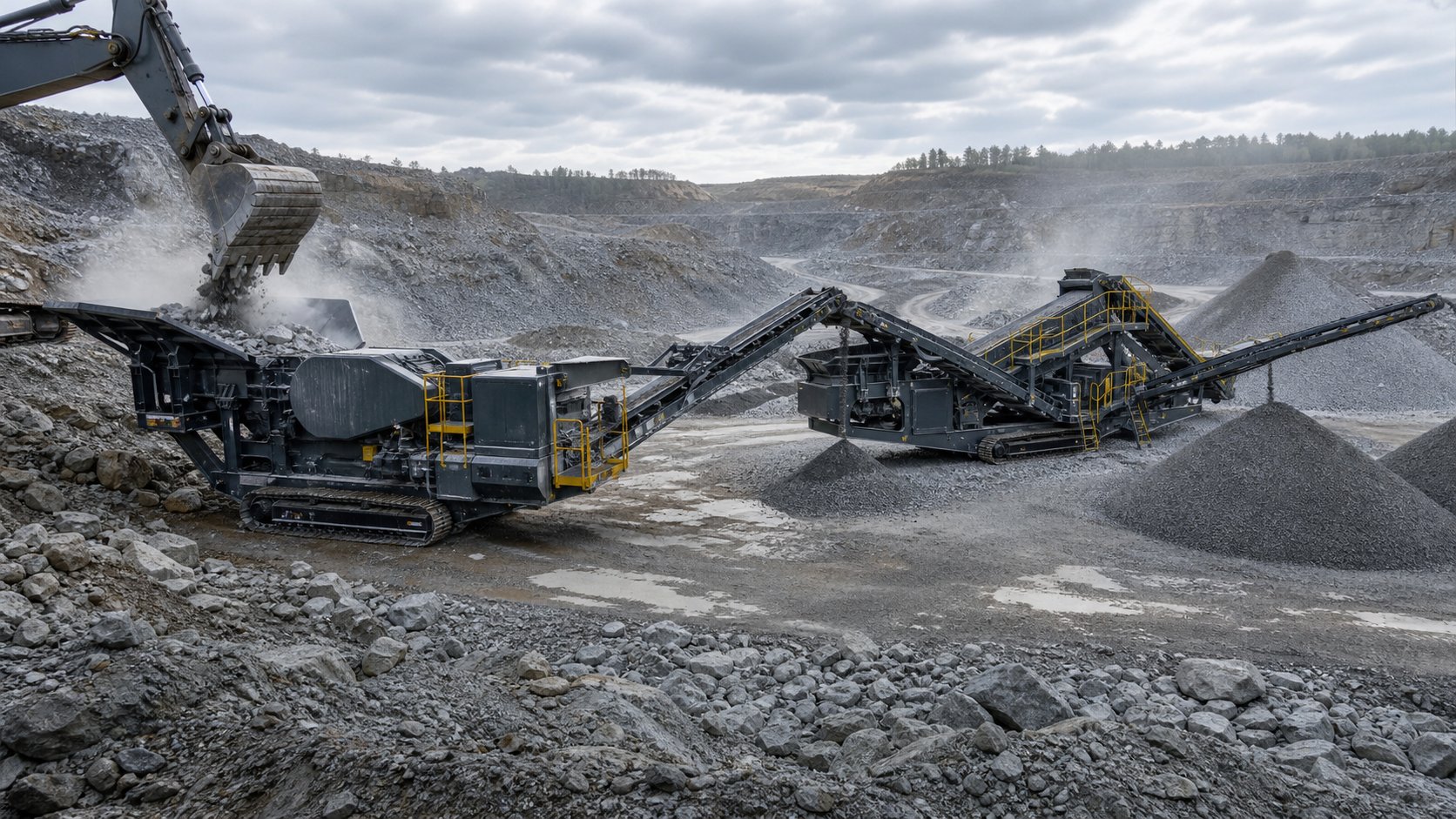

Integrated feeding, crushing and conveying on a crawler chassis.
Feeders, crushers, screens and conveyors engineered as one coordinated system.
NOT SURE WHICH MACHINE FITS?
